Data Sheets | Certification | Specification

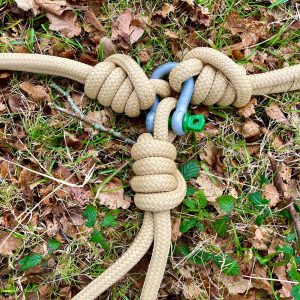

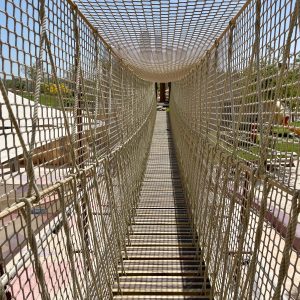

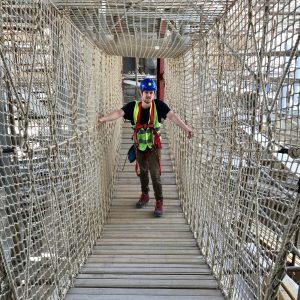

For structural suspension of Rope Bridges and Treetop Walkways

40 tonnes certificated break-load

Material – Heat-set UHMwPE with polyurethane coating
Construction – 12-strand single braid
Extreme strength-to-weight ratio
15 x stronger than steel
20 x lighter than steel
Safer than wire (low recoil)
Hydrophobic fibre (no water absorption)
Floats
Low creep
Easy to splice
Resistant to kinking
Maintains high strength around tight-radius bends
Exceptional UV and chemical resistance
Abrasion-resistant coating reduces likelihood of snagging and provides superior winch drum grip
Low elongation (3% at break)
Certification can be supplied
A high-performance rope designed for ultra-low stretch
The high UV rating of the core means that the cover can be stripped without fear of a UV-related loss in strength.
Polyester cover fibres are used where strength, low stretch and durability is needed. The melting point of polyester is 260°C but starts to lose its strength at 150°C
Hemp colour

Other colours available:
Grey, black, white. Also – red/orange mottle, yellow mottle, green mottle, blue mottle and grey mottle

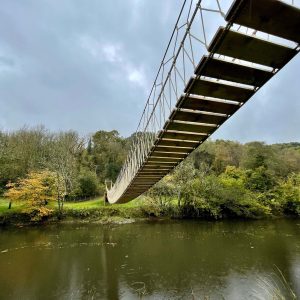

For structural suspension of Rope Bridges

8.4 tonnes certificated break-load

Material – Heat-set UHMwPE with polyurethane coating
Construction – 12-strand single braid
Extreme strength-to-weight ratio
15 x stronger than steel
20 x lighter than steel
Safer than wire (low recoil)
Hydrophobic fibre (no water absorption)
Floats
Low creep
Easy to splice
Resistant to kinking
Maintains high strength around tight-radius bends
Exceptional UV and chemical resistance
Abrasion-resistant coating reduces likelihood of snagging and provides superior winch drum grip
Low elongation (3% at break)
Certification can be supplied
A high-performance rope designed for ultra-low stretch
The high UV rating of the core means that the cover can be stripped without fear of a UV-related loss in strength.
Polyester cover fibres are used where strength, low stretch and durability is needed. The melting point of polyester is 260°C but starts to lose its strength at 150°C
Hemp colour

Other colours available:
Grey, black, white. Also – red/orange mottle, yellow mottle, green mottle, blue mottle and grey mottle

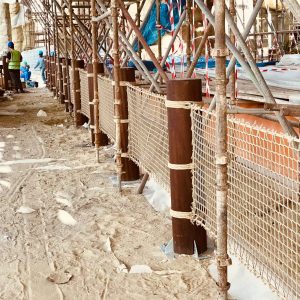

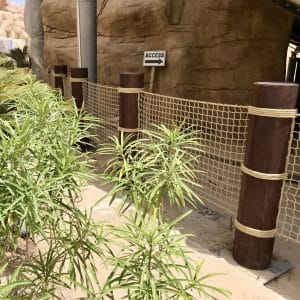

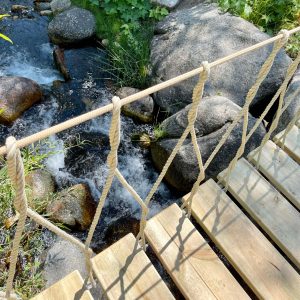

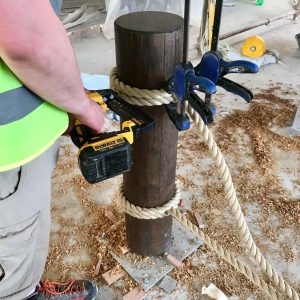

For structural integrity on Rope Balustrades

3.4 tonnes certificated break-load

Installed as a high-strength, ultra-low stretch dressing rope, with certificated load for balustrade safety

Material – Heat-set UHMwPE with coloured polyester coating [hemp colour, plus other colours available]
Construction – 12-strand double braid
Extreme strength-to-weight ratio
15 x stronger than steel
20 x lighter than steel
Safer than wire (low recoil)
Hydrophobic fibre (no water absorption)
Floats
Low creep
Easy to splice
Resistant to kinking
Maintains high strength around tight-radius bends
Exceptional UV and chemical resistance
Abrasion-resistant coating reduces likelihood of snagging and provides superior winch drum grip
Low elongation [3% at break]
Certification can be supplied
A high-performance rope designed for ultra-low stretch.
The high UV rating of the core means that the cover can be stripped without fear of a UV-related loss in strength.
Polyester cover fibres are used where strength, low stretch and durability is needed. The melting point of polyester is 260°C but starts to lose its strength at 150°C
Hemp colour

Other colours available:
Grey, black, white. Also – red/orange mottle, yellow mottle, green mottle, blue mottle and grey mottle

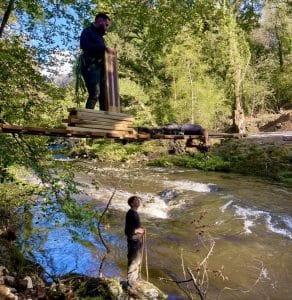

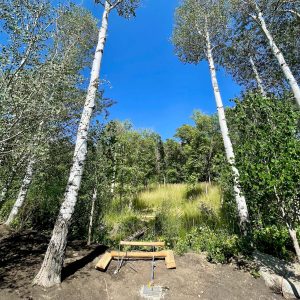

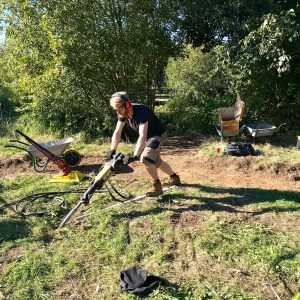

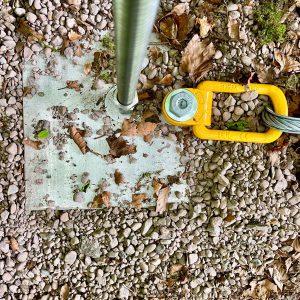

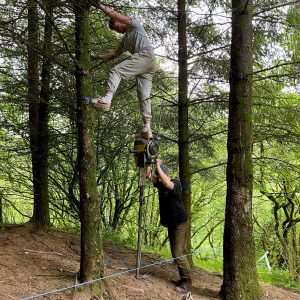

To install minimal impact , tested and certificated ground anchors for Rope Bridges

Power Pack and Breaker
Drive Rod Set 32/3m
Rod Removal Set

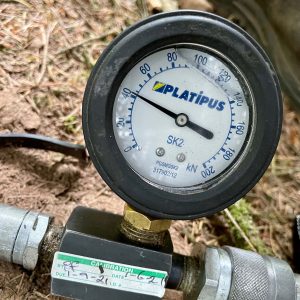

Hydraulic Stressing Kit (100kN)

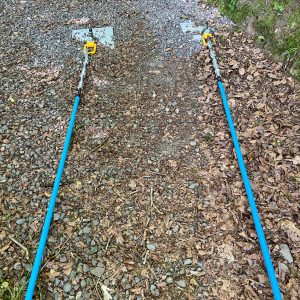

To deliver minimal impact , tested and certificated ground anchors for Rope Bridges

B6 Aluminium Bronze Ground Anchor c/w 4m x 20mm ø s/s threaded rod, coupler, lock nuts, load nut and s/s Ground Load Plate
Stainless Steel Plate – tested and certificated to proof load at 90 degrees

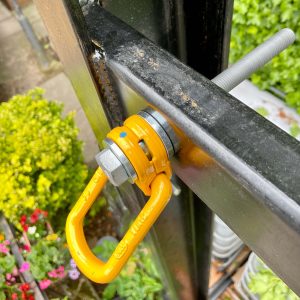

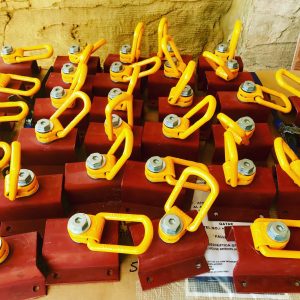

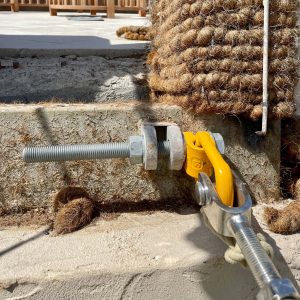

M20 Swivel Load Ring Anchors
 – 10T break-load certificated

To provide plate of steel box section mounted attachment points for Rope Bridges and Treetop Walkways

10 tonnes certificated break-load

Rotates through 360° and pivots 180°
Simultaneously allows lifting from any direction
Manufactured from forged alloy steel, quenched and tempered
Manufactured/tested in accordance with EN1677-1
Load rated parts are 100% magnaflux crack detected
Individual forged parts and cap screw are traceable to Test Certification
Bolts are Metric thread (ASME / ANSI B18.3.1M)
Proof tested to 2.5 times the WLL
Fatigue rated to 1.5 times the WLL
Design Factor 4 : 1

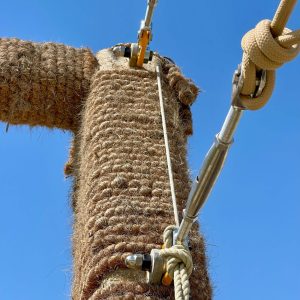

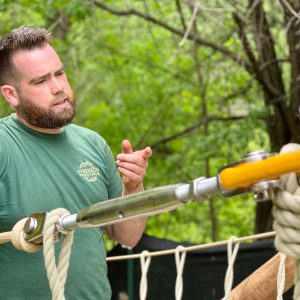

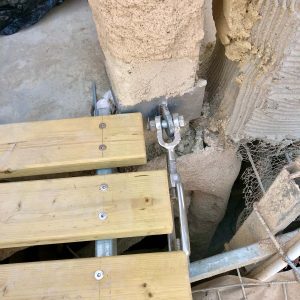

To provide future-proofed and certificated tension variation for Rope Bridges and Treetop Walkways

24mm jaw-jaw
21 tonnes certificated break-load
Polished AISI 316 grade A4 stainless steel

20mm jaw-jaw
13 tonnes certificated break-load
Polished AISI 316 grade A4 stainless steel

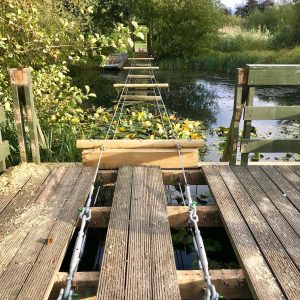

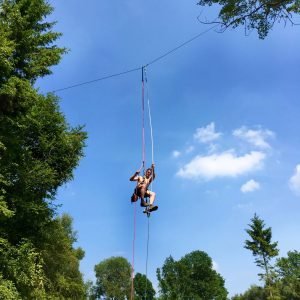

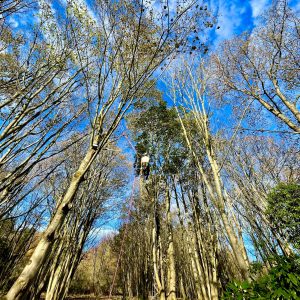

To provide a load-tested and certificated structural suspension line for Rope Bridges, Treetop Walkways and Nest Swings

7/19 Galvanised Steel Cable:

12mm diameter
Tensile strength of wire = 1960N/mm²
Minimum breaking load = 10.2 tonnes

Thimbles – BS464 specification

Aluminium Ferrules – EN13411-3 specification

Galvanised Rigging Screws – 24mm jaw-jaw, SWL = 2.2 tonnes

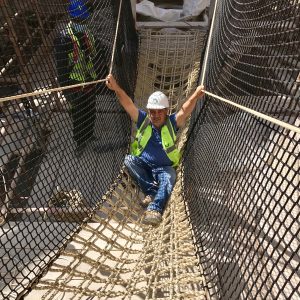

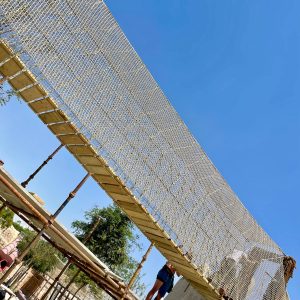

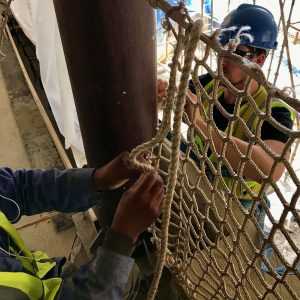

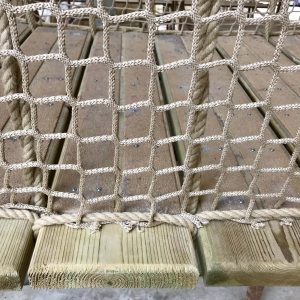

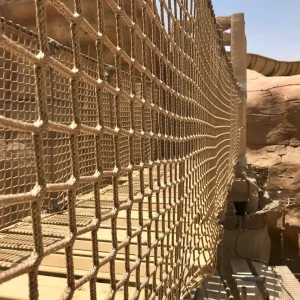

For certificated safety in Rope Bridge commercial settings, Treetop Walkways and commercial balustrade projects

45mm mesh fall arrest certificated netting
Material – PP-filament yarn, high tenacity
Yarn count – 220 dtex
Breaking force in relation to fineness – 7,0cN/den
UV stabilisation – 300 kly
Mesh breaking strength – 190g/m2

Optional – Flame retardant, DIN 4102 B1/2

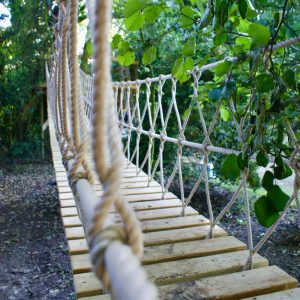

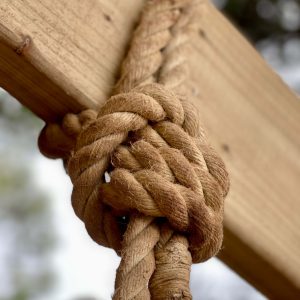

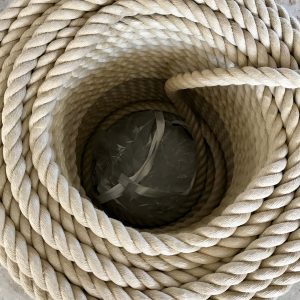

For ‘big rope‘ dressing and fixing in Rope Bridges, balustrades in Treehouses and ‘walk-on‘ walkway in Treetop Walkways

7.6 tonnes break-load
No swelling or change in diameter when wet
Classic look
Light weight
Floats
Soft to handle
Grips well
Good abrasion resistance
Hypoallergenic
UV resistant
Easy care
Long lifespan
Strong, weather and UV resistant
Material – Polypropylene
Construction 3-strand hawser lay
Natural hemp Colour

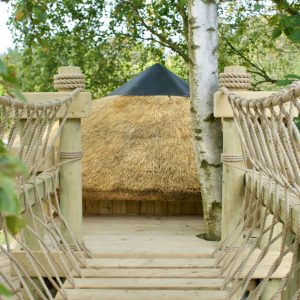

Dressing rope-work applications for Rope Bridges, Treehouses and Treetop Walkways

1.366 tonnes break-load
No swelling or change in diameter when wet
Classic look
Light weight
Floats
Soft to handle
Grips well
Good abrasion resistance
Hypoallergenic
UV resistant
Easy care
Long lifespan
Strong, weather and UV resistant
Material – Polypropylene
Construction 3-strand hawser lay
Natural hemp colour

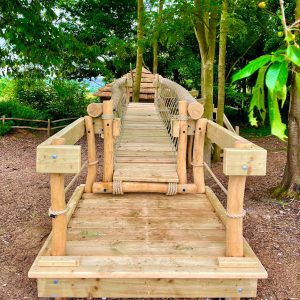

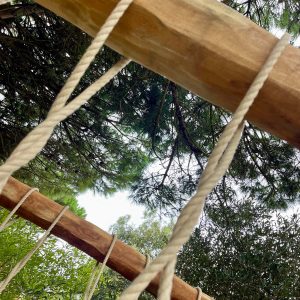

For structural applications and life-longevity in Rope Bridges, Treetop Walkways, Treehouses and Deck-Platforms

Bark Removed
Sapwood-free
K5 Sanded finish
Durability Class 1-2 (BSEN 350-2)
Heartwood has a high resistance to wood destroying insects and fungi
High density
No chemical treatment required for in-ground installation
60 year life-span

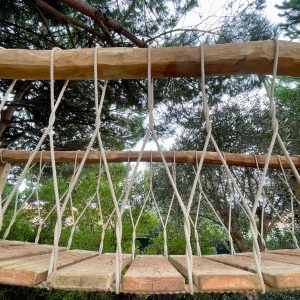

Robinia Hardwood Balustrade Posts:
K5 Sanded finish
Durability Class 1-2 (BSEN 350-2)
Heartwood has a high resistance to wood destroying insects and fungi
High density
No chemical treatment required for in-ground installation
60 year life-span

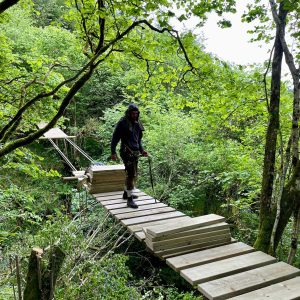

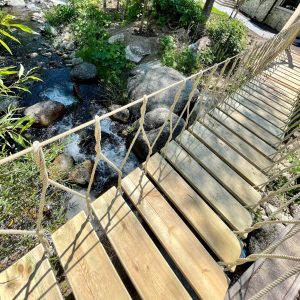

For production of treatment certificated Rope Bridge ‘slats‘, Treehouse decking

C24 Graded and Stamped [marks sanded out]
Celcure treated
Prepared/Finished [routed and sanded]
Deck Boads = 45mm thick x 220mm wide
Ring Beams = 73mm thick x 195mm wide
FSC Chain of Custody/PEFC ST 2002:2013 Chain of Custody Certification
EN14081-1, EN338, EN4978 and EN336

STRENGTH GRADES:
Bending parallel to grain 24N/mm2
Tension parallel to grain 14N/mm2
Tension perpendicular to grain 0.4N/mm2
Compression parallel to grain 21N/mm2
Compression perpendicular to grain 2.5N/mm2
Shear parallel to grain 4N/mm2

STIFFNESS GRADES:
Modulus of elasticity mean 11kN/mm2
Modulus of elasticity minimum 7.4kN/mm2
Mean modulus of elasiticity perpendicular 0.37kN/mm2

DENSITY GRADES
Characteristic density 350kg/m2
Average density 420kg/m2

CELCURE TREATMENT
Use Class 1-4/Service Life 15-60 years

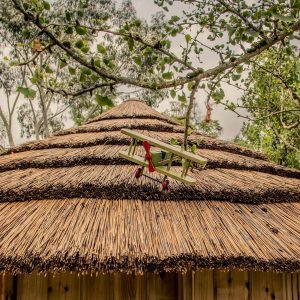

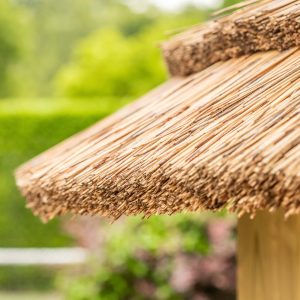

For a versatile and great looking waterproof roof in Treehouses

Cape reed thatch is a totally natural, environmentally friendly product.
The thatching reed is harvested from a replenishable, renewable source
Harvesting promotes growth
100% UVC protection
99% waterproof
Natural, eco-friendly product
Cooler in the summer, warmer in the winter
